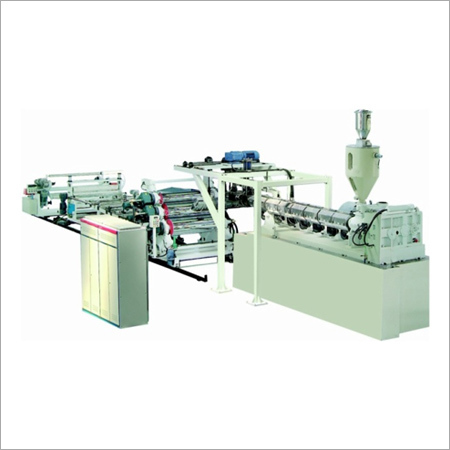

Mono Layer / Multi Layer Sheet Extrusion Line
Product Details:
Product Description
Product Feature:
PET sheets,has the feature of excellent processing capacity, high transparency ,innocuity, nosmall and non pollution, easy to be recycled. It is particularly good for good or medicine packing.
Products application:
Vacuum forming: food packager,toy box,stationery case, tool and hardware packing
Obstruct packing :for electronic components packing
Normal application:folded forming, collar lining,decoration material, file folder,document cover, credit card.
Special application：medical instrument packing,medicine packing, Industrialanti-sepsis,roast tray of microwave oven(CPET)
Main Technical Paramters:
| Extruder Model | SJ90/33F | SJ100/33F | SJ120/33F |
| Width of sheet | 300-610MM | 500-950mm | 500-1500mm |
| Thickness of sheet | 0.15-1.4MM | 0.15-1.4mm | 0.15-1.4mm |
| MainDrivingMotor | 7.5KW | 90KW | 132KW |
| Max.productionSpeed | 25m/min | 25m/min | 28 m/min |
| Max.extrusionCapacity | 180kg/hr | 300KW/hr | 550Kg/hr |
