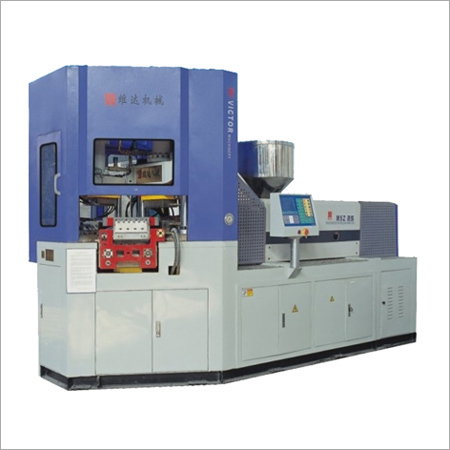

MSZ45 Injection Blow Molding Machine
Product Details:
Product Description
Mould Cavitation:
| Approx.Volume (ml) | Max.body diameter (mm) | Min.neck diameter (mm) | Max.Height (mm) | Min.Weight (gram) | Center Distance (mm) | Max.Cavitation (cav) |
| 10 | 24 | 8 | 60 | 3 | 35 | 13 |
| 60 | 42 | 14 | 90 | 7 | 50 | 9 |
| 150 | 60 | 20 | 120 | 15 | 80 | 6 |
| 300 | 60 | 30 | 170 | 35 | 120 | 3 |
Main Technical paramters:
| Injection system | Unit | MSZ45 |
| Screw Diameter | mm | 45 |
| Screw L/D | | 20.6-23:1 |
| Injection weight(HDPE) | g | 241 |
| Max.screw speed | rpm | 160 |
| Heating capacity | KW | 10-235 |
| Clamping&blowing system | | 10 |
| Clamping force of injection | KN | 452 |
| Clamping force of blowing | KN | 75.4 |
| Max.Platen size(L×W) | mm | 560×390 |
| Min.Mold thickness(H) | mm | 240 |
| Heating capacity of mould | KW | 3.6 |
| Stripping system | | |
| Stripping stroke | mm | 220 |
| Dry cycle | sec | 3.5 |
| Driving system | | |
| Motor power | KW | 22 |
| Hydraulic pressure | Mpa | 14 |
| Product range | | |
| Suitable bottle range | ml | 5-450 |
| Max.bottle height | mm | ≦200 |
| Max.Dia.of bottle | mm | ≦80 |
*Max.uniformity of bottle weight,thickness and volume
*High speed production with multi cavities available on different bottle size
*Suitable material:PE,PP,PS,SAN,PETG,EVA...etc for various bottles
*Different method as option,big space for ease mould changing
