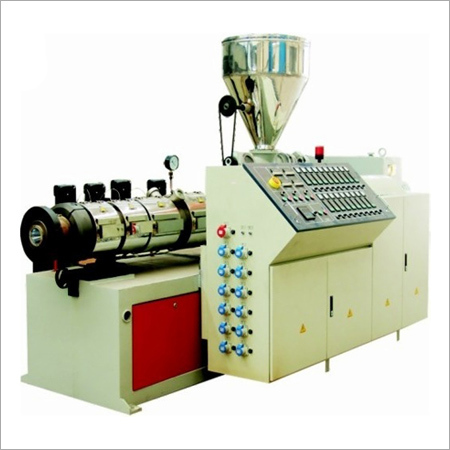

Conical Twin Screw Extruder
Product Details:
X
Product Description
Funcitions and Construction:
SJSZ series conical twin-screw extruders with appropriate screws, dies and other auxiliaries can directly convert thermoplastic especialy RPVC powder into Pipe, plate sheet, film and profile, and also Provide function of modifying and Pelleting.
The extruders drived by D.C motor with a thyristor to stepless regulate. It also equipped with the over-load protection and stoppage alarming system. The screws core and the outside of barrels are cooled by the circulation of oil, their functions include vacuum venting and forced feeding.
SJSZ series conical twin-screw extruders with appropriate screws, dies and other auxiliaries can directly convert thermoplastic especialy RPVC powder into Pipe, plate sheet, film and profile, and also Provide function of modifying and Pelleting.
The extruders drived by D.C motor with a thyristor to stepless regulate. It also equipped with the over-load protection and stoppage alarming system. The screws core and the outside of barrels are cooled by the circulation of oil, their functions include vacuum venting and forced feeding.
Main Technical Paramters:
Model | Screw Diameter mm | Driving Motor kw | Capacity Mm | Screw Speed Rpm |
SJSZ35/80 | 65 | 11 | 80 | 10-90 |
SJSZ55/109 | 90 | 30 | 150 | 10-90 |
SJSZ65/132 | 100 | 37 | 250 | 10-80 |
SJSZ80-155 | 120 | 67 | 450 | 10-80 |
SJSZ92-188 | 130 | 119 | 700 | 10-70 |
